V-Farm

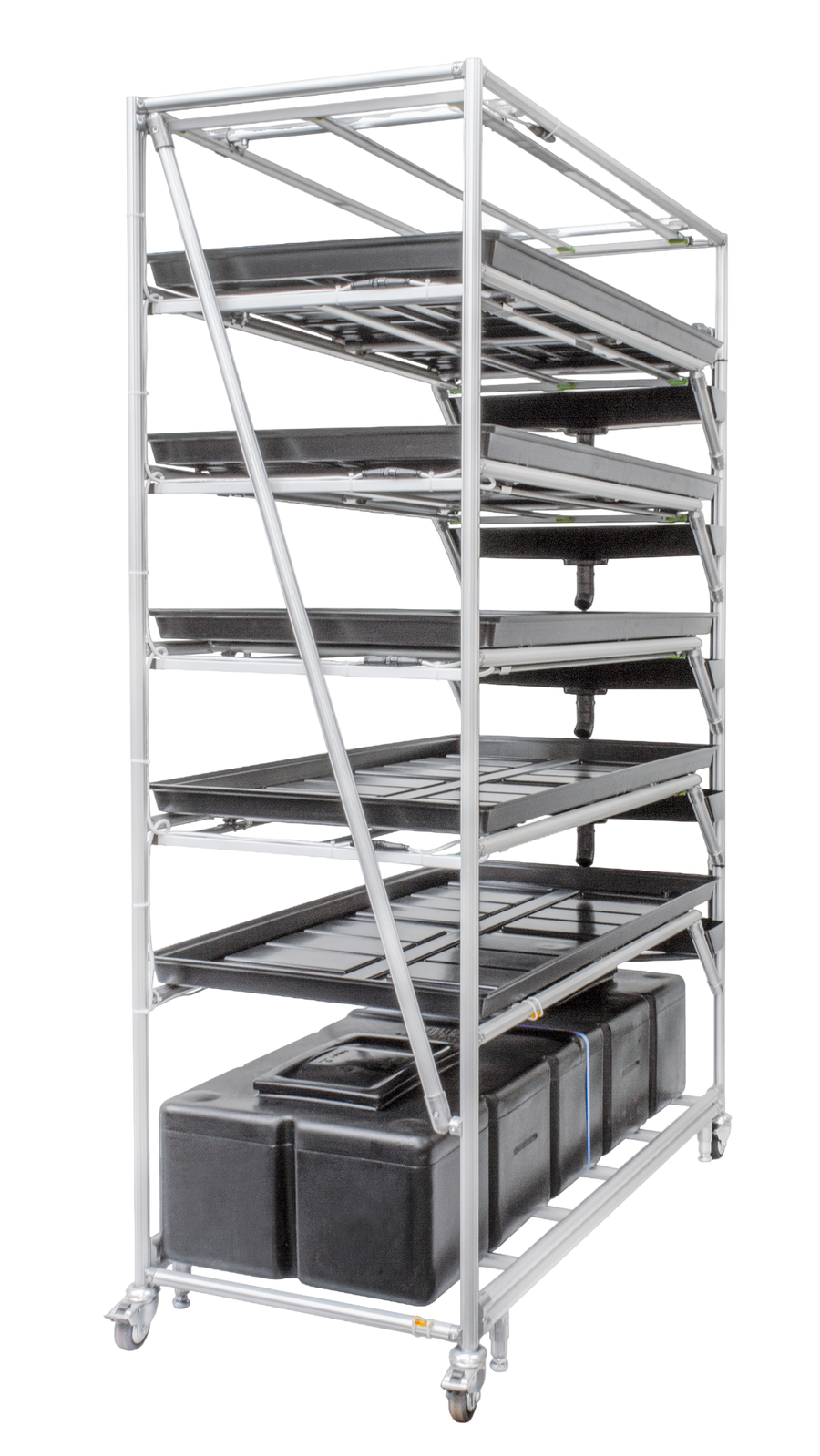

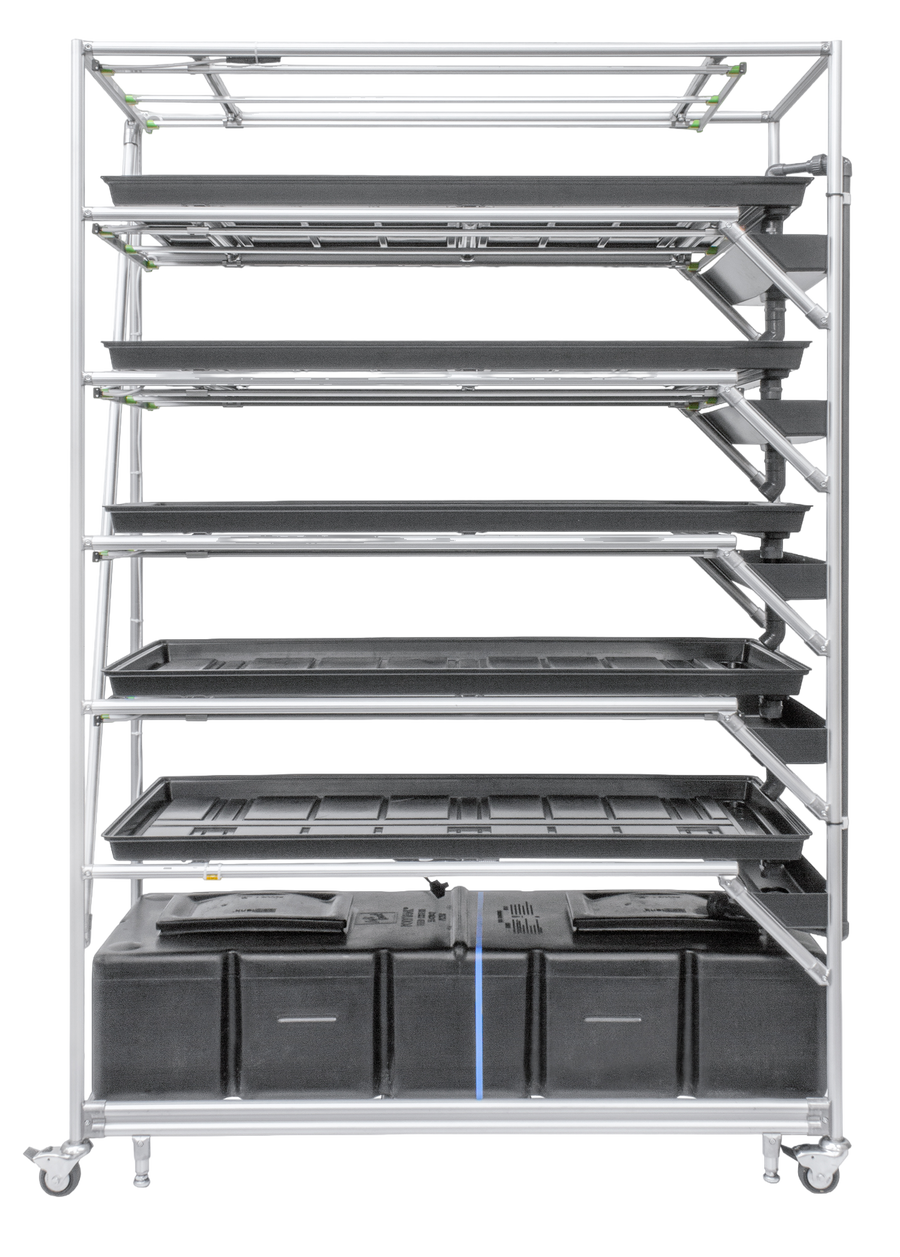

Black Series Vertical Grow Rack
The BLACK Modular Series is designed for smaller crop production, making it ideal for microgreens, baby leaf crops, and large-scale propagation.
Suitable for
MicrogreensBabyleafPropagationLeafy GreensHerbs
5.64m2
Growing Area
5 - 7
Growing Levels
360 L/hr
Irrigation
Max 1050w
Power Draw
Technical Specifications
Built to perform at scale.
Growing Levels
5 - 7 levels

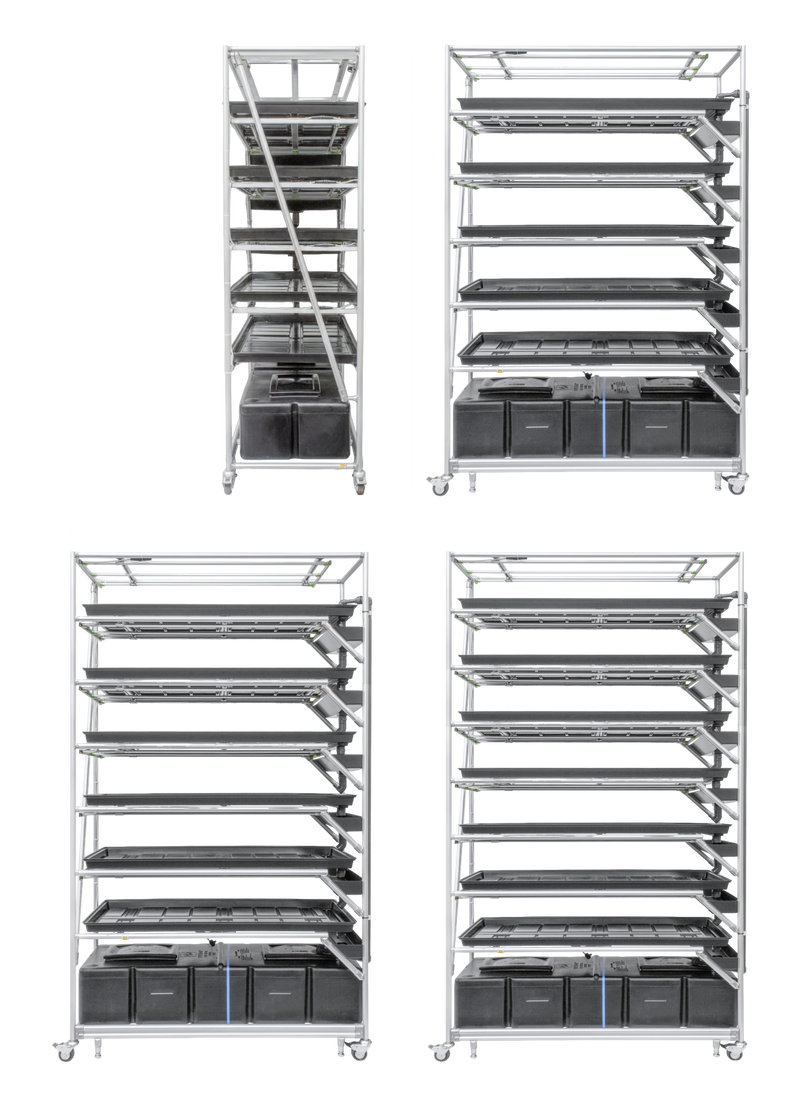

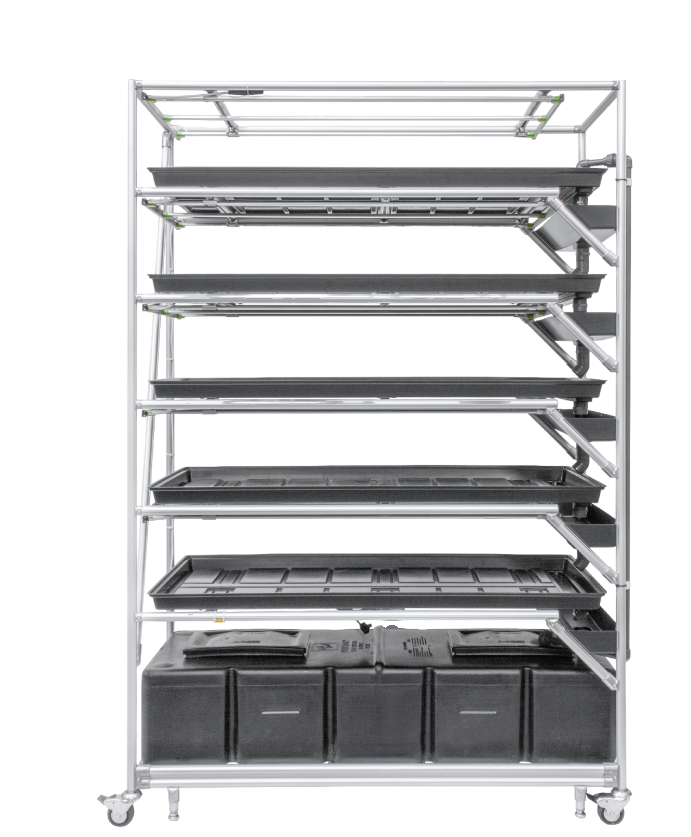

5 Level Dimensions (WxDxH)
1.4m x 0.72m x 2.1m

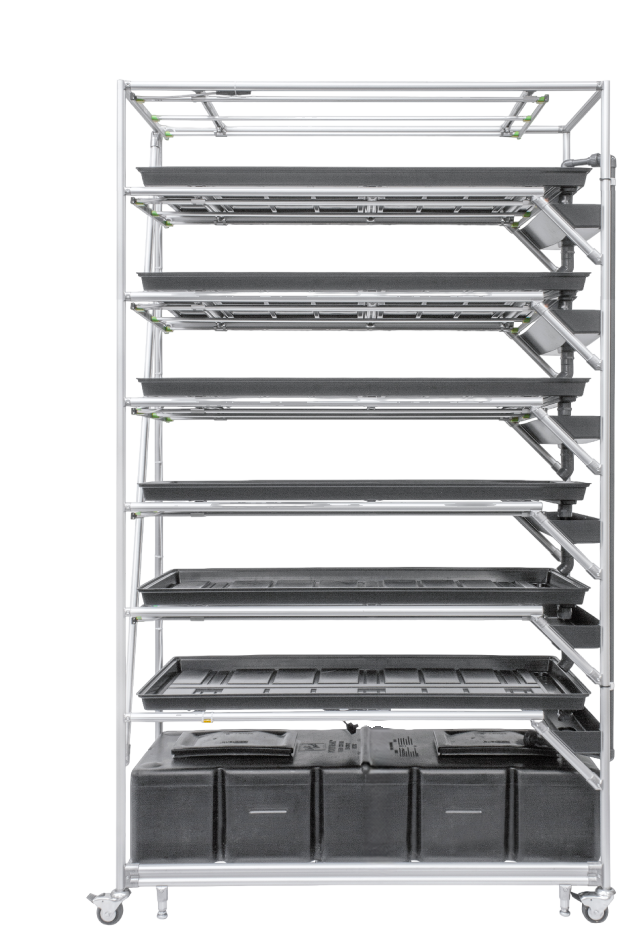

6 Level Dimensions (WxDxH)
1.4m x 0.72m x 2.5m

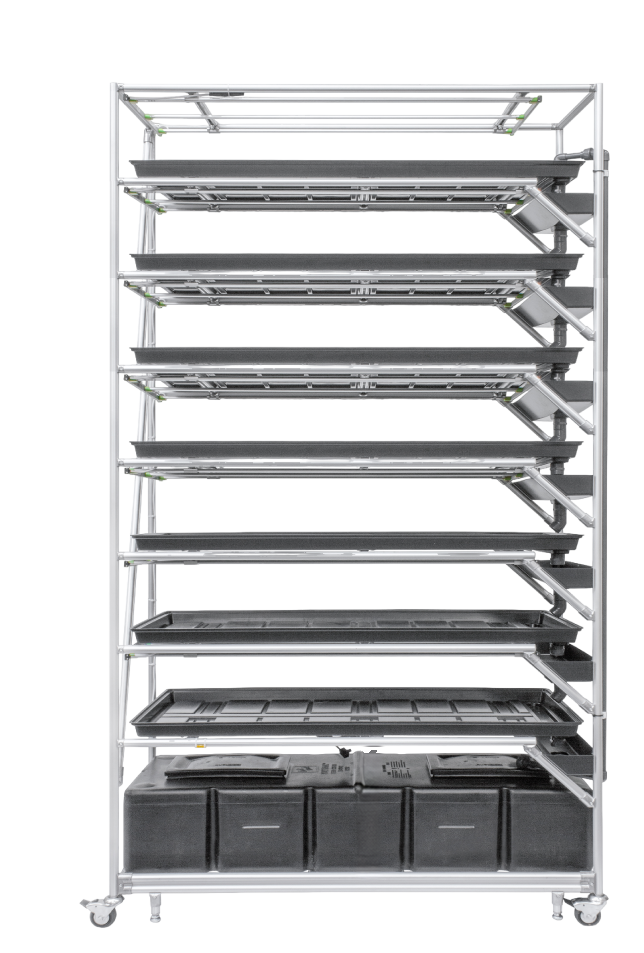

7 Level Dimensions (WxDxH)
1.4m x 0.72m x 2.5m
Weight (empty)
80kg
Power Consumption (5 Levels)
Max 750w
Power Consumption (6 Levels)
Max 900w
Power Consumption (7 Levels)
Max 1050w
Growing Area
5.64 m2
PPFD avg
230umol at 28.5cm
Frame Material
Alluminium
Tank Volume
114 L
Irrigation Flow
360 L/hr
Irrigation Method
Flood & Drain or Drip System

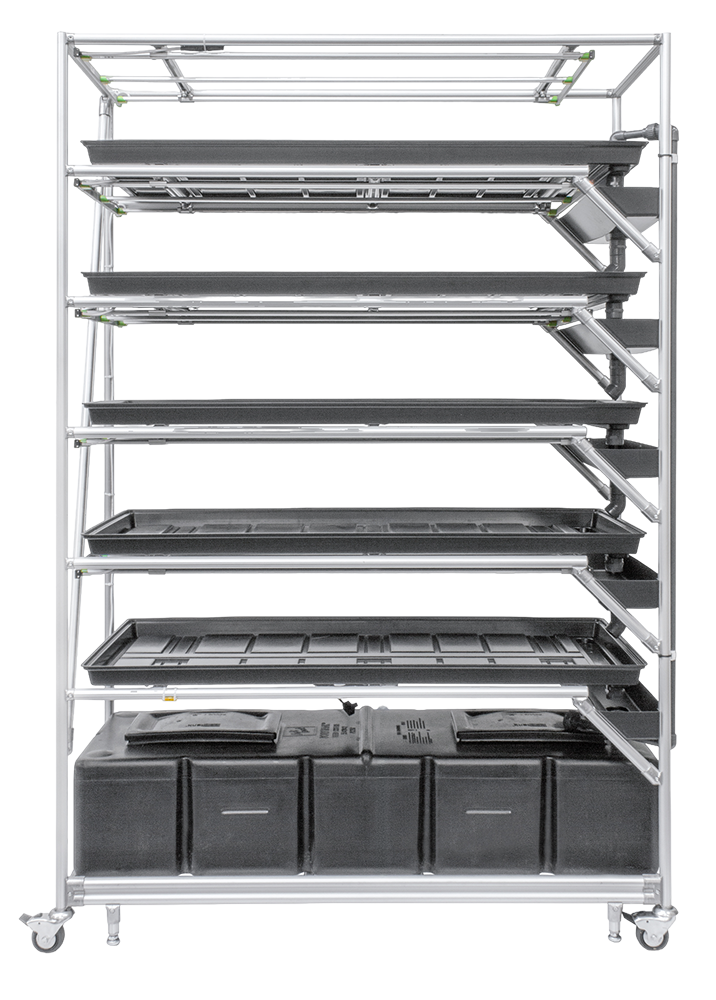

Product Highlights
Explore every detail.
Click on any hotspot to learn more about each component.
01

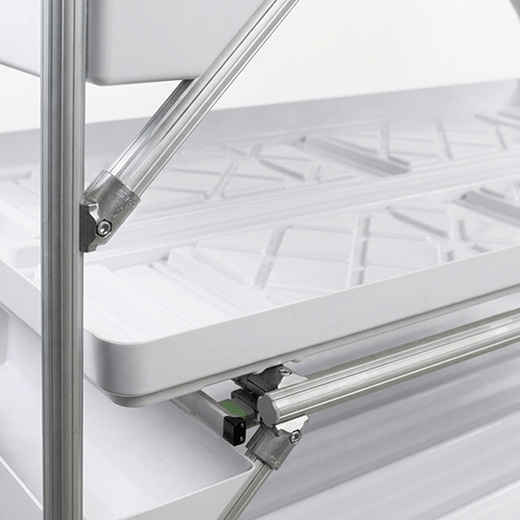

Aluminium Structure
High-strength, low-weight space frame aluminium structure.
02

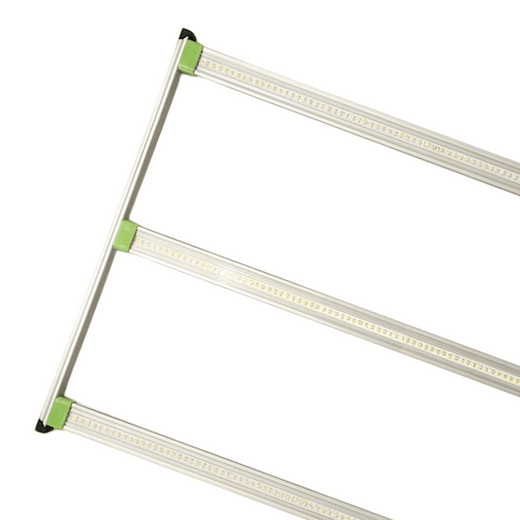

FINN Modular Light
Ultra-thin, high-performance LED grow lights deliver 95.5W per layer (382W per system) at 230 umol output, with eight 300mm x 300mm slim panels per layer.
03
Flexible irrigation
Every level comes with flood and drain irrigation as standard
04

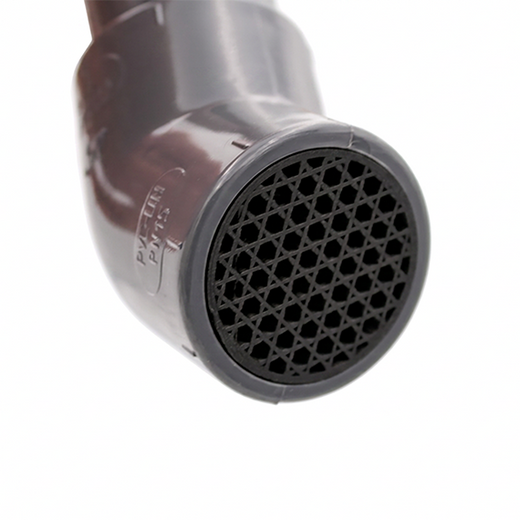

Venturex Oxygen-mixing System
Independent irrigation collection troughs on every level use a non-splash Venturex oxygen-mixing system and are easily removable for cleaning and maintenance.
05

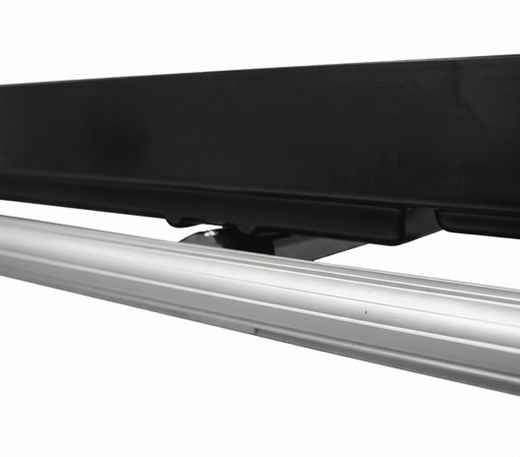

Slide-out trays & easy maintenance
Each level has independent trays that slide out easily, while larger-diameter pipe assembly reduces the risk of blockages.
06
Dual-tray NFT
NFT features a dual tray for flow-rate setting plus pot covers that fit inside the tray.
07
Multi-module collection trough
An irrigation collection trough is used when the unit is extended to multiple modules.
08

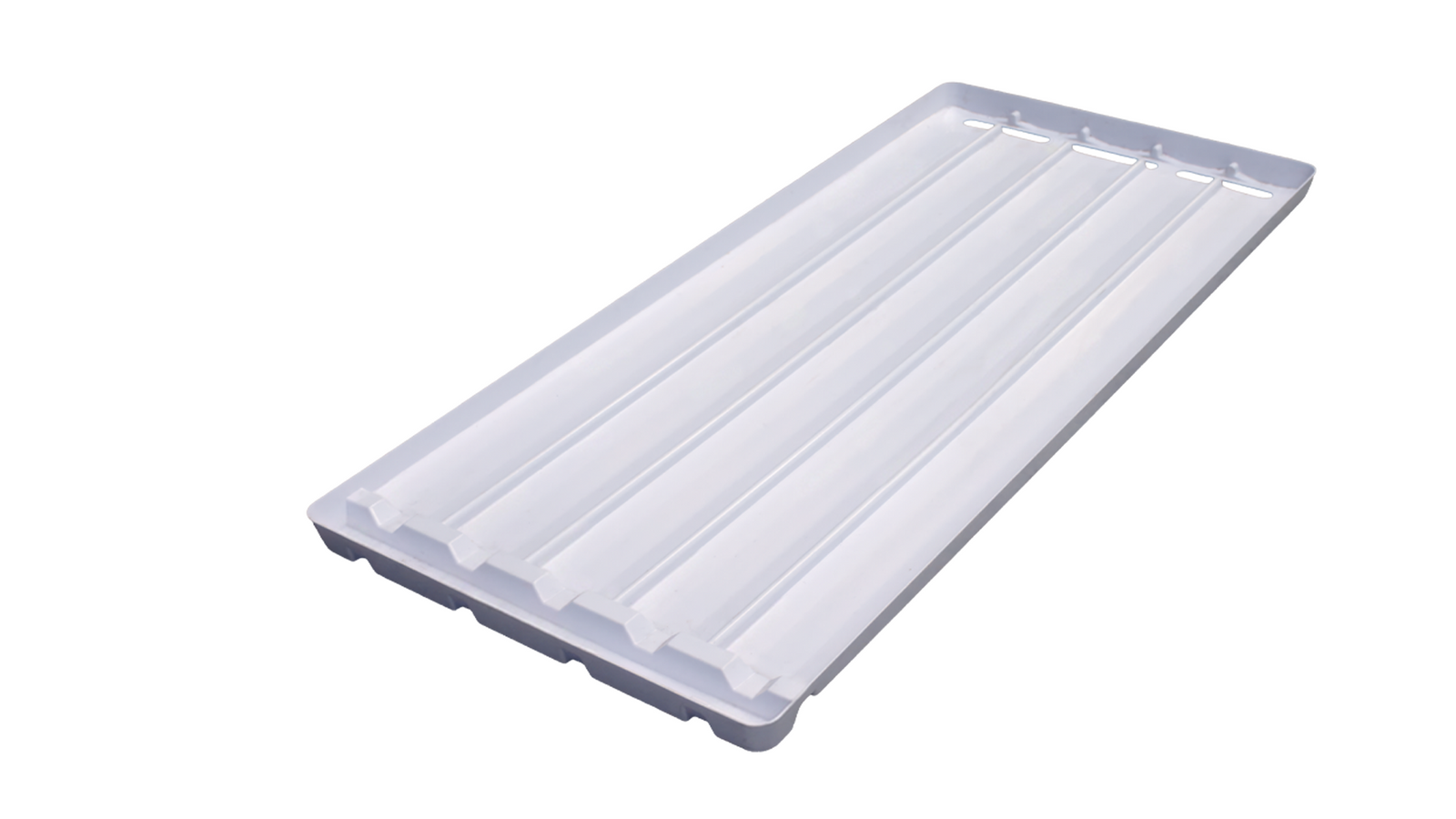

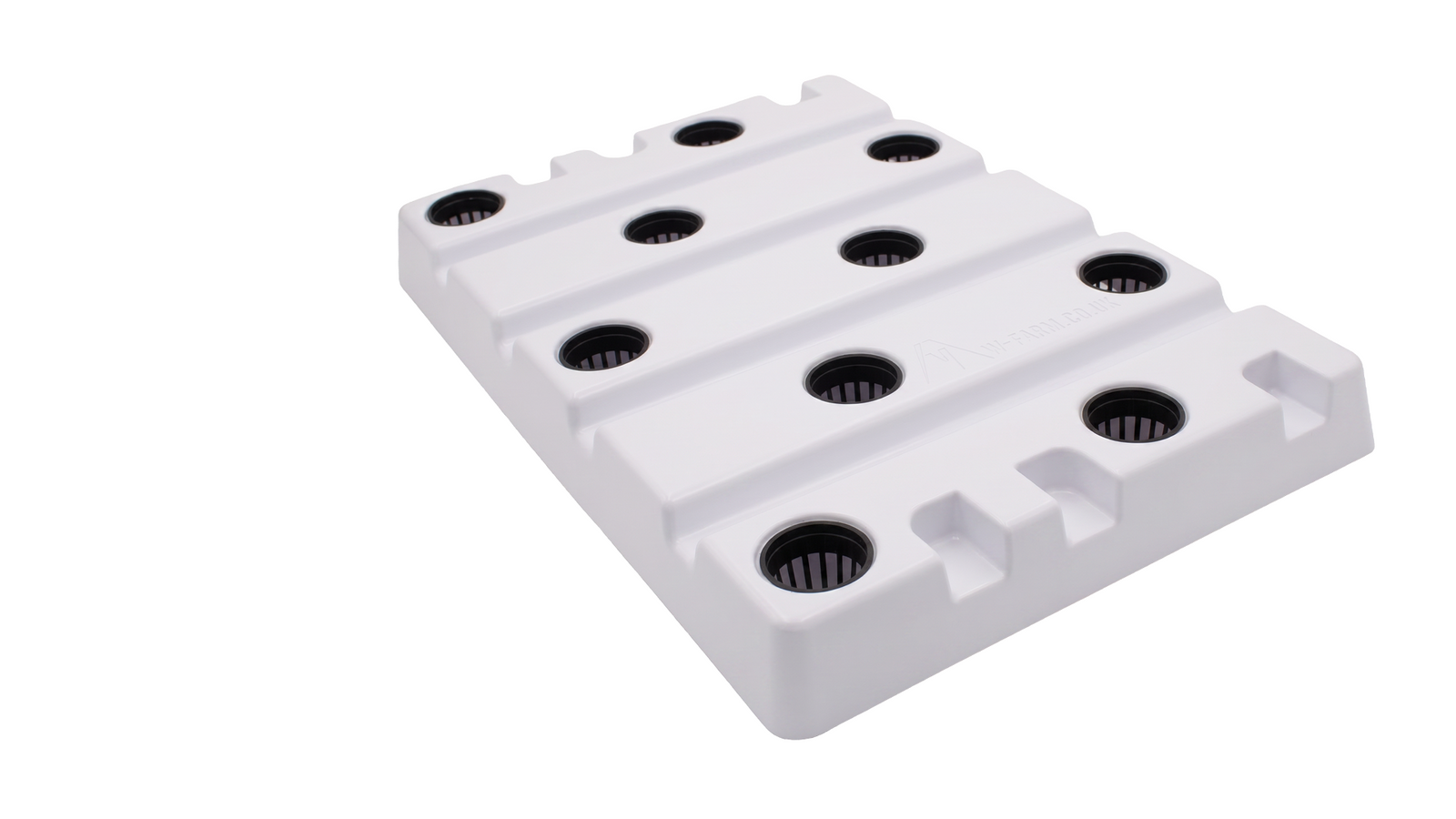

Versatile tray inserts

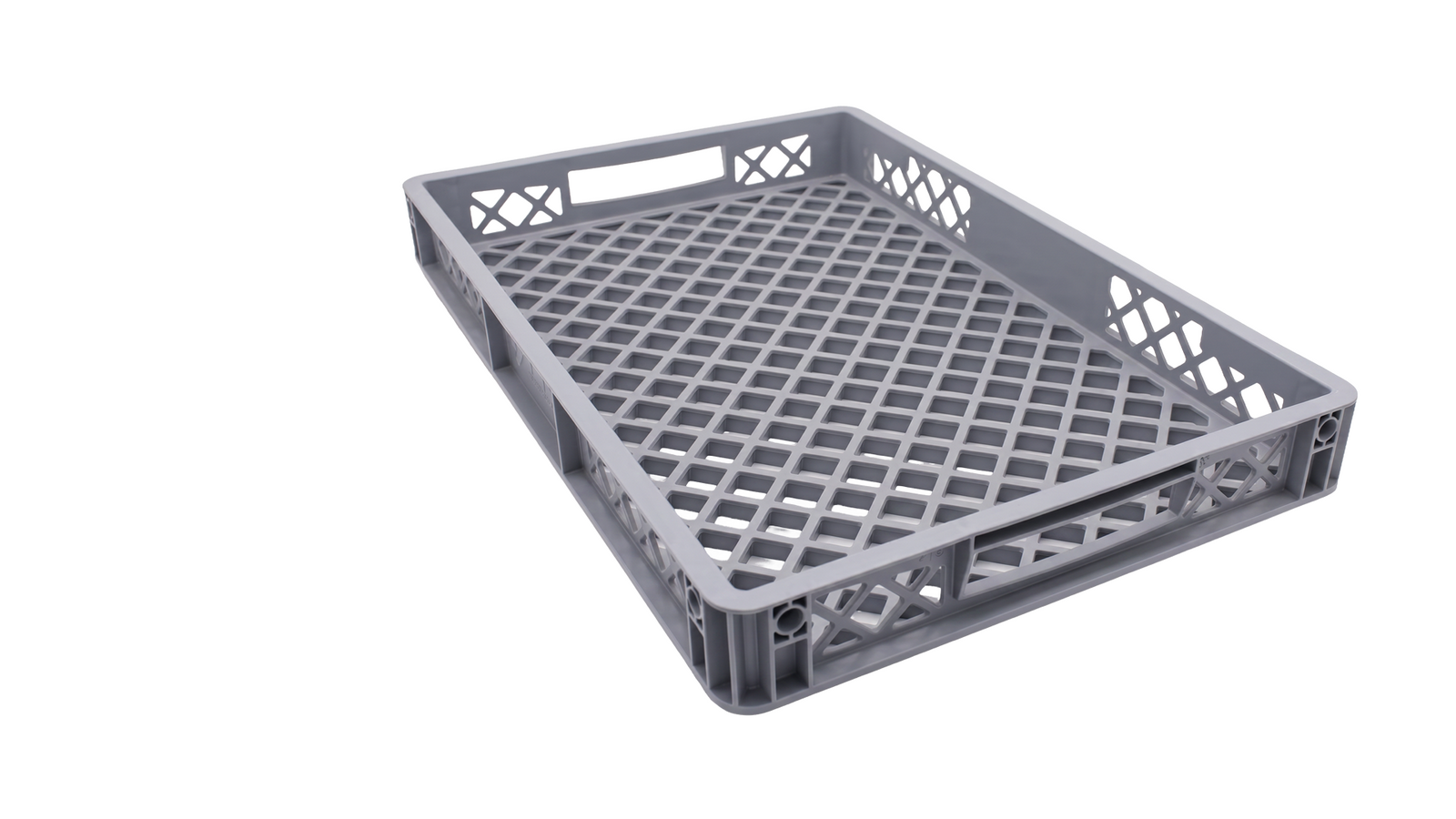

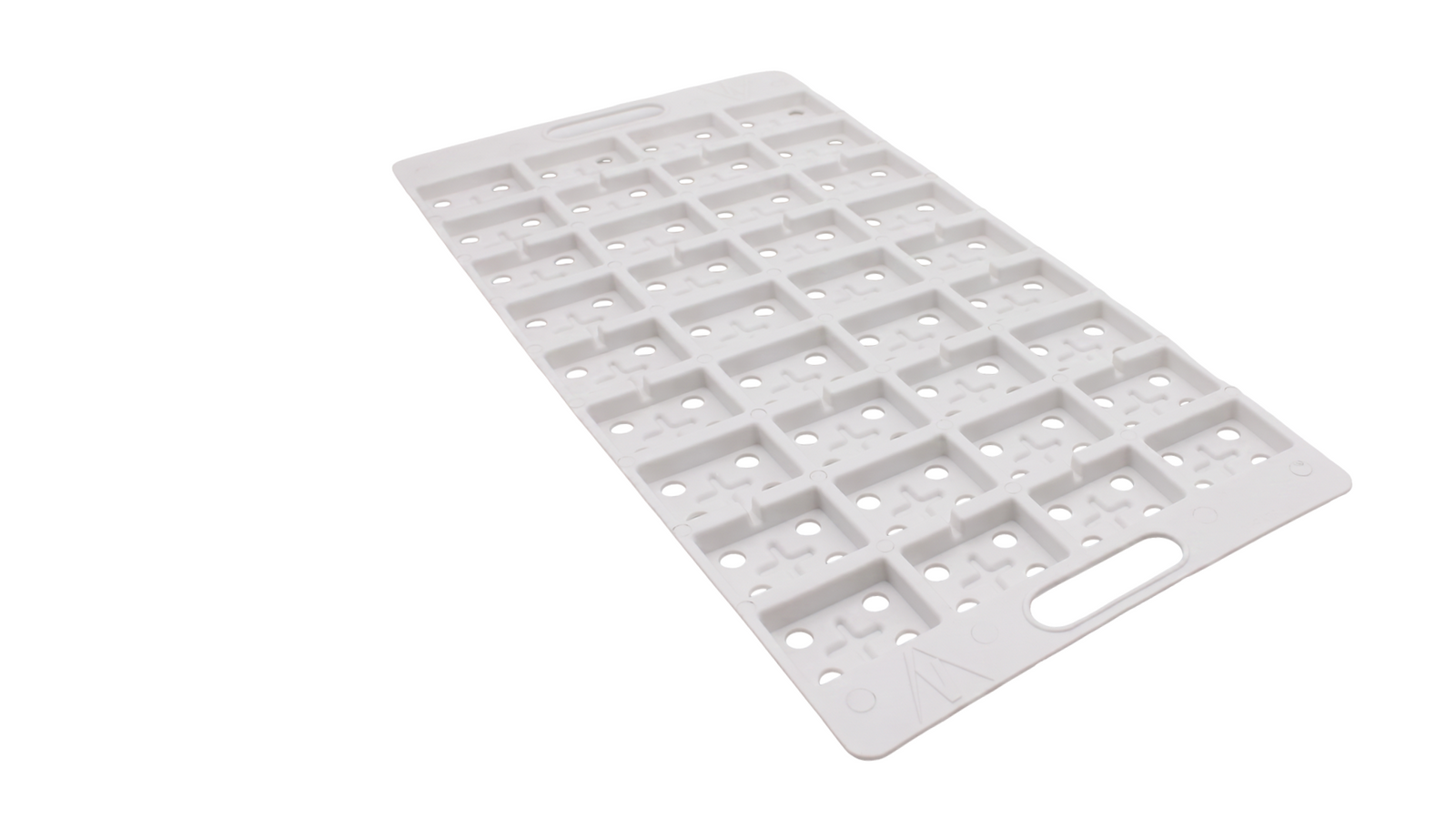

Multiple insert options are available, including egg box inserts for 50mm net pots, matting and punnet trays for microgreens and baby leaf, and NFT inserts to convert from flood and drain.
09
App control & auto-dosing
Optional VertiOne app control and auto-dosing.
10
Precision pump
High-performance pump with adjustable flow for precise control.
11

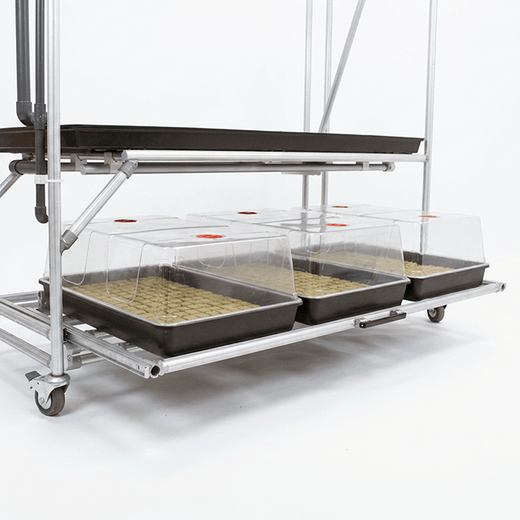

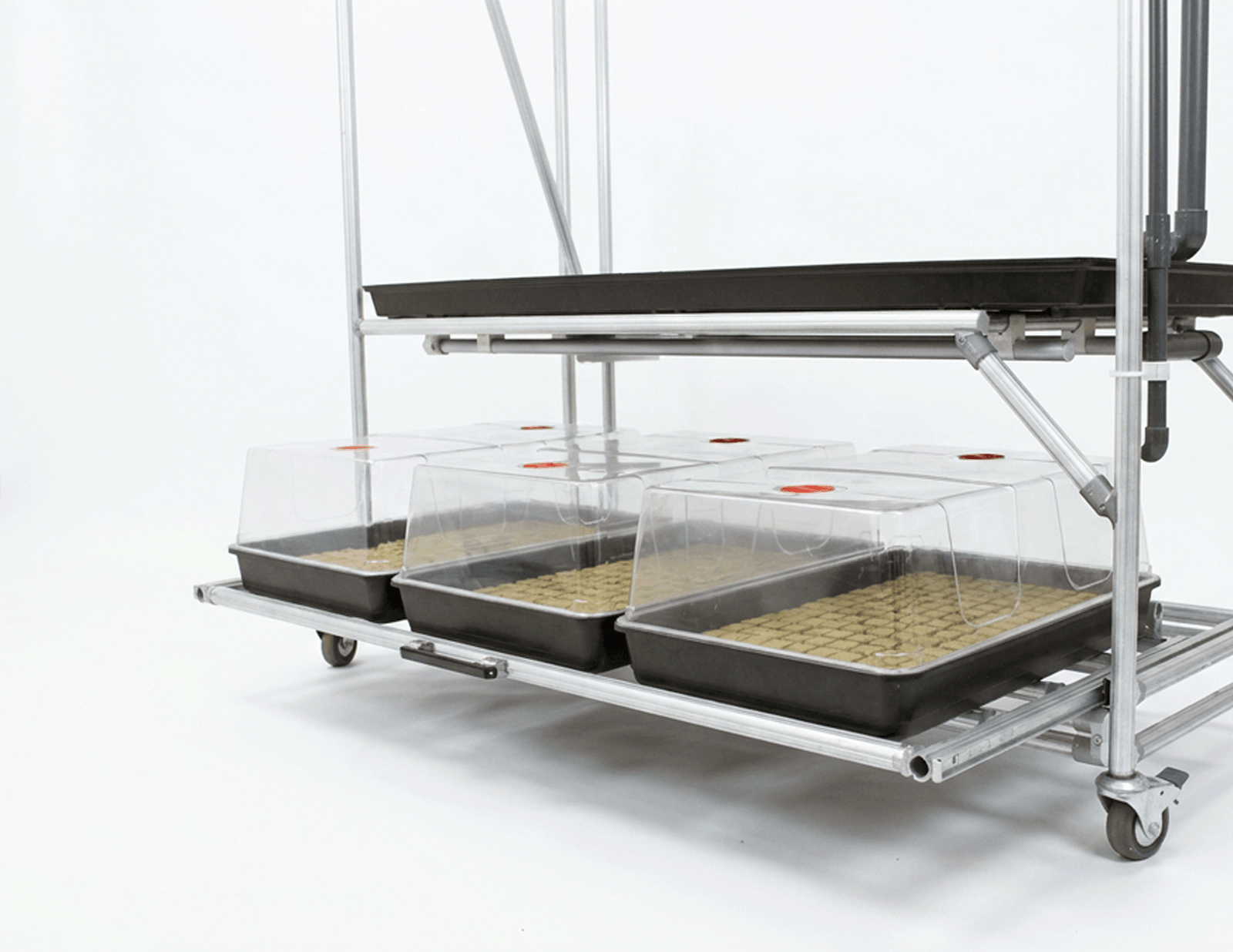

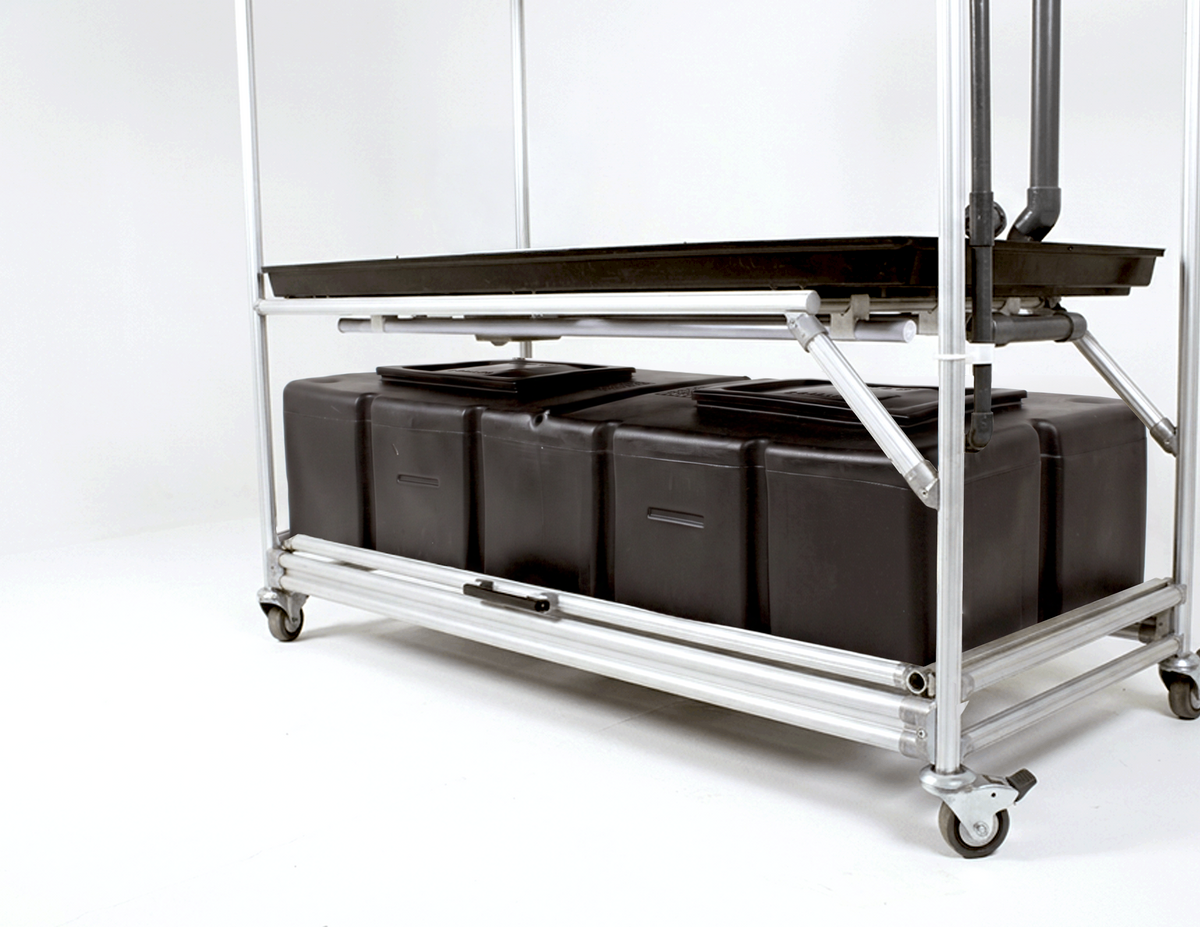

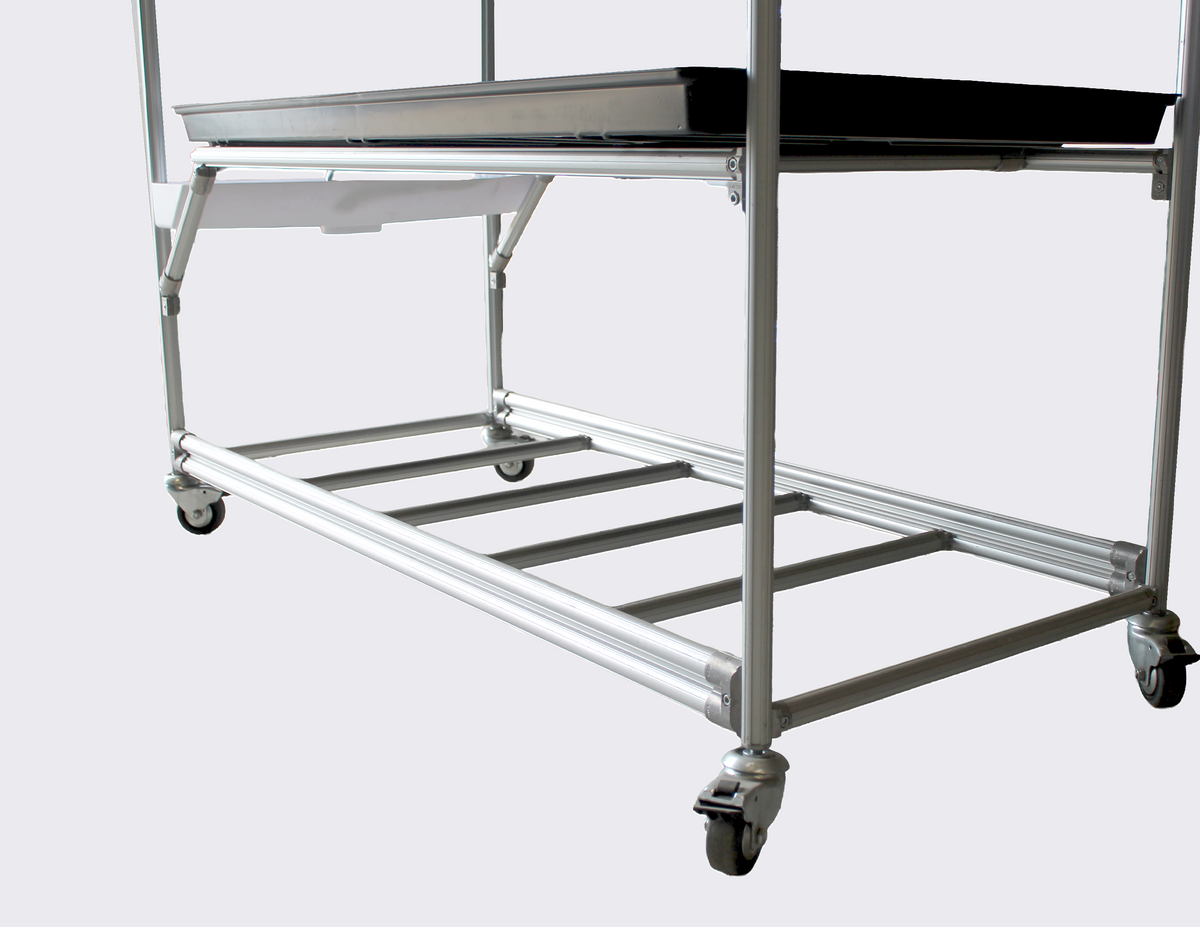

Configurable Bottom Level
Can be set up as a Master unit with tank and pump, a Slave unit without, or a propagation shelf housing three large propagators.
12
114L tank
114L tank with pump.
13
Plug-and-play
Supplied fully assembled and powered via a standard 13A plug.
14
Mobility option
Available with or without wheels.
FINN Modular Fixture
Purpose-built spectrum. Maximum yield.
The FINN LED panel is engineered exclusively for the Black Series. Its multi-channel spectrum delivers the exact wavelengths leafy greens and microgreens need at each growth stage.
Full-Cycle Spectrum
Covers blue, red and far-red channels, optimised from germination through to harvest.
Dimmable Channels
Each channel dims independently via the VertiOne app.
Ultra Slim Profile and Sleek Design
Made from aluminium and glass.
100W
Power per panel
230 umol
PPFD average
3yr
Warranty

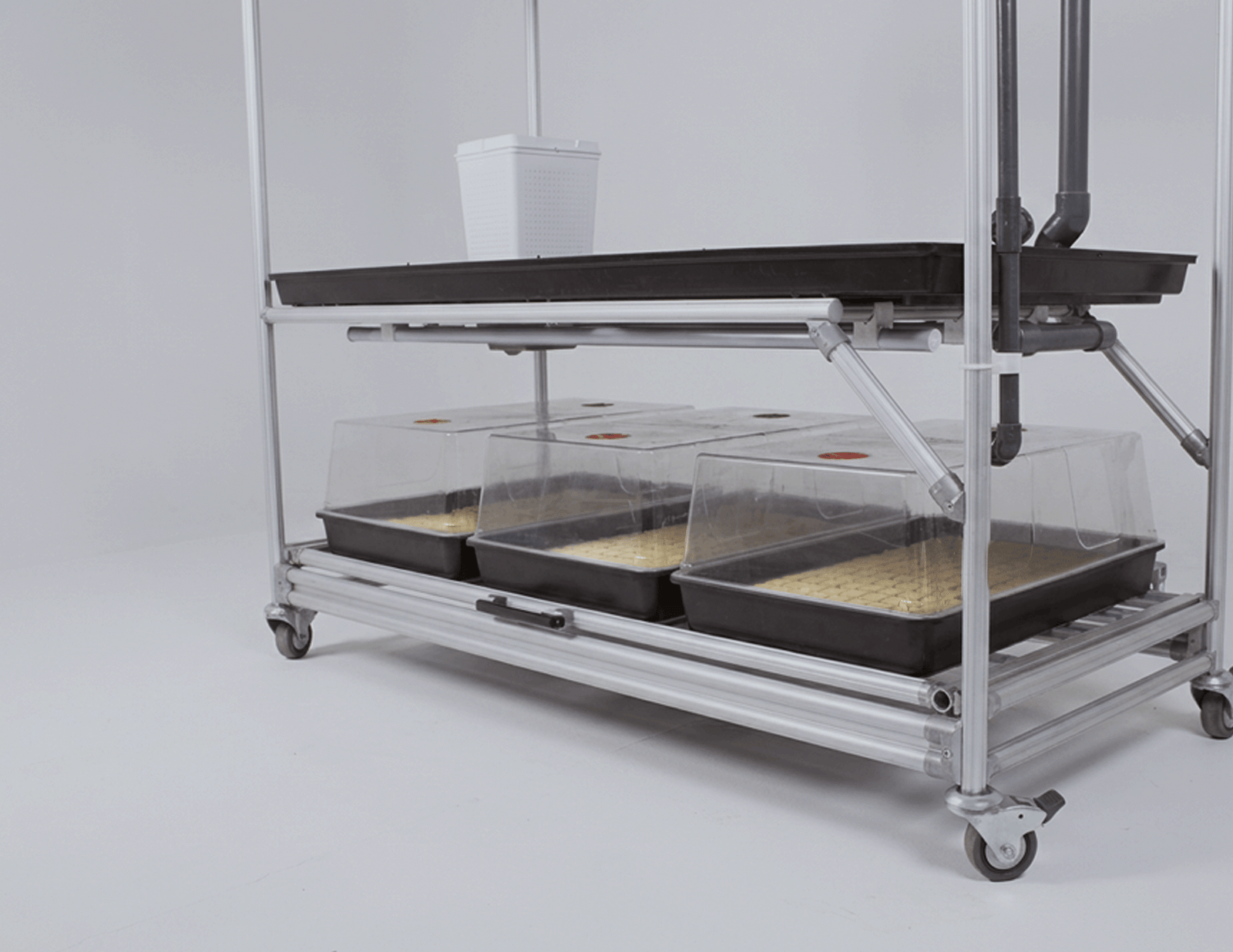

Bottom Shelf Options

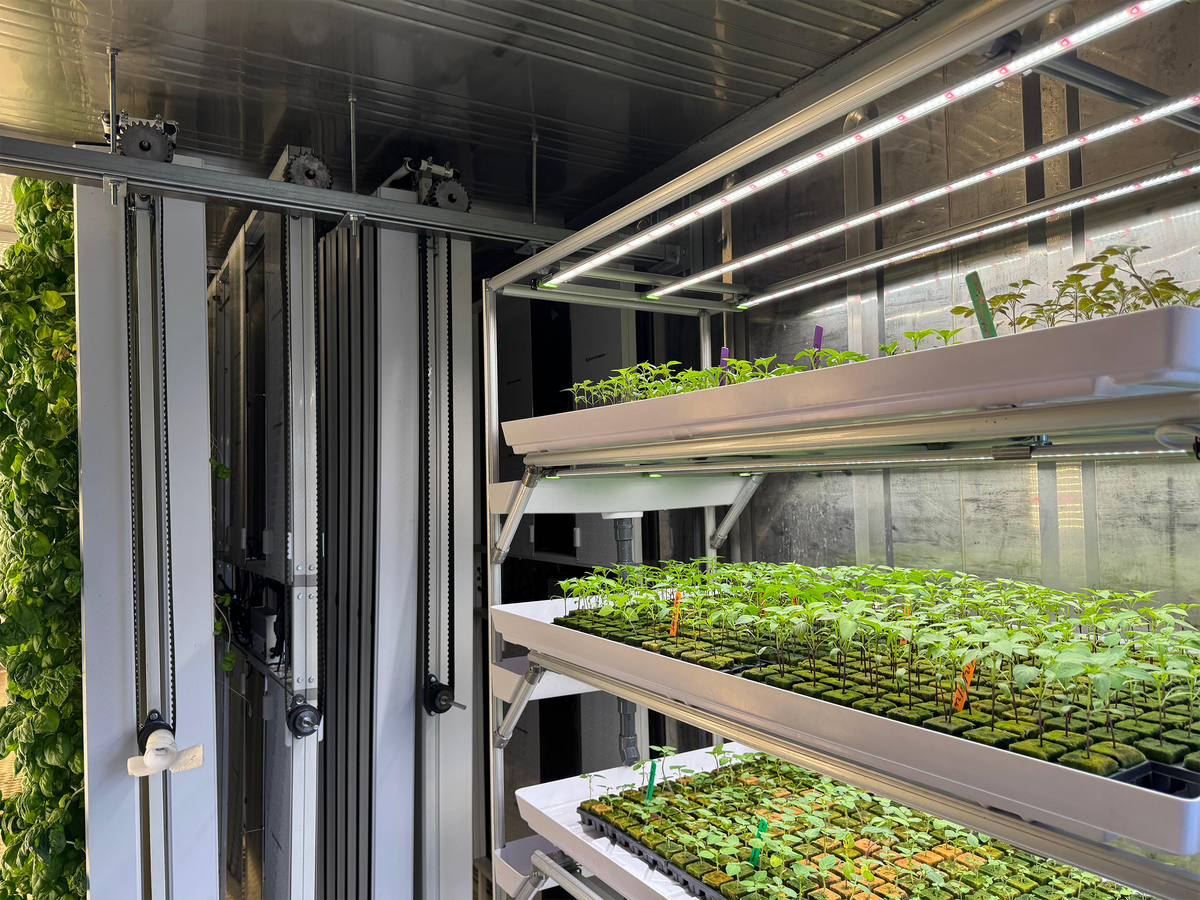

VFarm Insert Trays
Automate your VFarm Rack with VertiOne Controller
The Black Series integrates precision irrigation, multi-spectrum LED lighting and full climate automation in a single robust enclosure.
- Plug and play, runs off a 13amp plug
- Completely automate lighting, irrigation and fertigation with a bolt on VertiOne Mini automation system.
- Get access to remote monitoring and grow rack control through the VertiOne app.
Configuration Options
Build a state-of-the-art vertical farm by using multiple VFarm grow racks.
Choose your set-up.

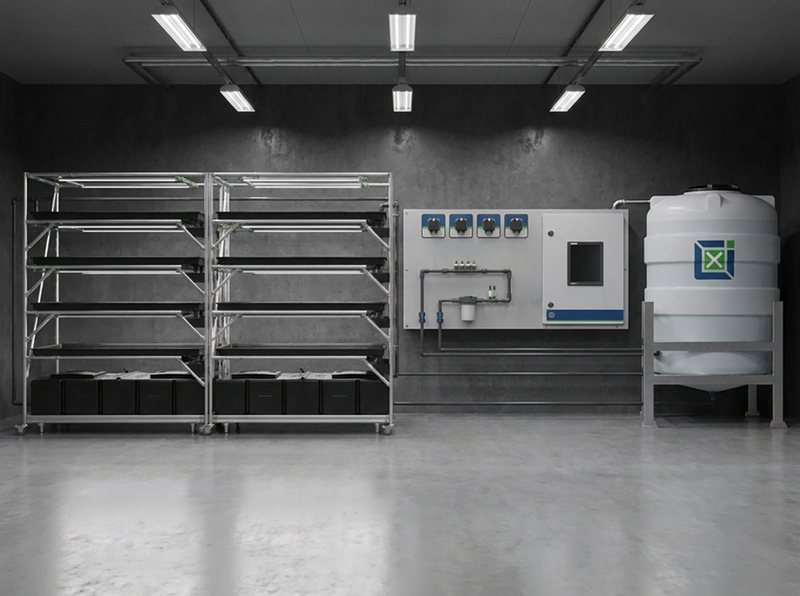

Option A
In-Line Configuration
Units positioned end-to-end along a single aisle. Ideal for long, narrow spaces. Maximises growing density per linear metre.

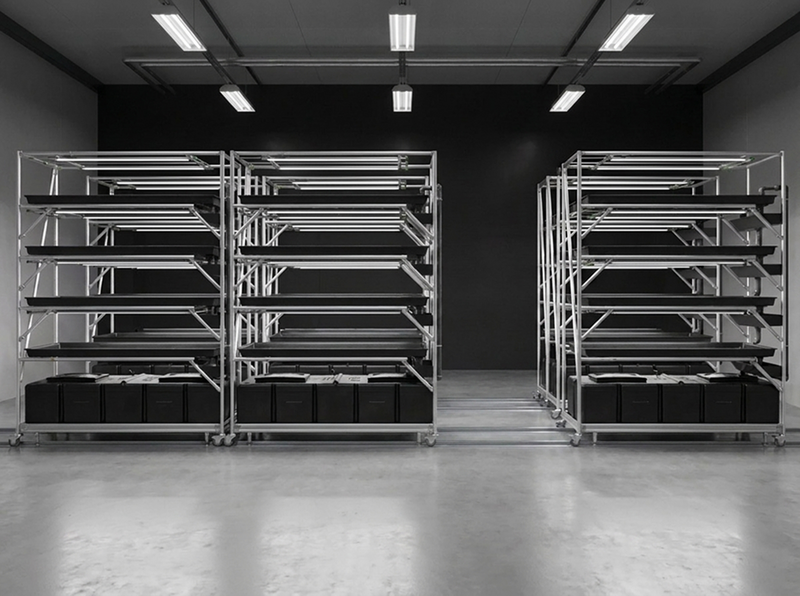

Option B
Rail System Configuration
Mobile units on a guide-rail system. Eliminates fixed aisles allowing you to harvest from any unit without repositioning.
VertiOne Technology
One seamless operation.
App control, precision fertigation and integrated HVACD work together to automate your operation.
App Control
Monitor and control every parameter remotely via the VertiOne app.
Precision Fertigation
Automated nutrient dosing delivers the exact EC and pH levels your crops require.
HVACD Climate
Integrated heating, ventilation, air conditioning and dehumidification maintain the precise microclimate year-round.
Compatible Crops
60+ crops. All year round.
Babyleaf
Baby Lettuce
25–35 days
Baby Kale
20–30 days
Baby Spinach
28–40 days
Baby Mustard
25–35 days
Baby Arugula
28–42 days
Baby Chard
25–40 days
Microgreens
Radish
7–10 days
Broccoli
8–12 days
Sunflower
8–12 days
Pea Shoots
10–14 days
Kale
8–12 days
Mustard
7–10 days
Arugula
8–12 days
Red Cabbage
8–12 days
Amaranth
10–14 days
Beet
10–14 days
Fenugreek
8–12 days
Wheatgrass
7–10 days
Ready to scale?
Grow more. Waste less.
Speak to our team about your facility, crop requirements and how the Black Series can work for your operation.
Every system includes
Full installation
Staff training
12-month support
